ilucifer

My Bartops Creations

Recommended Posts

Hi to everyone

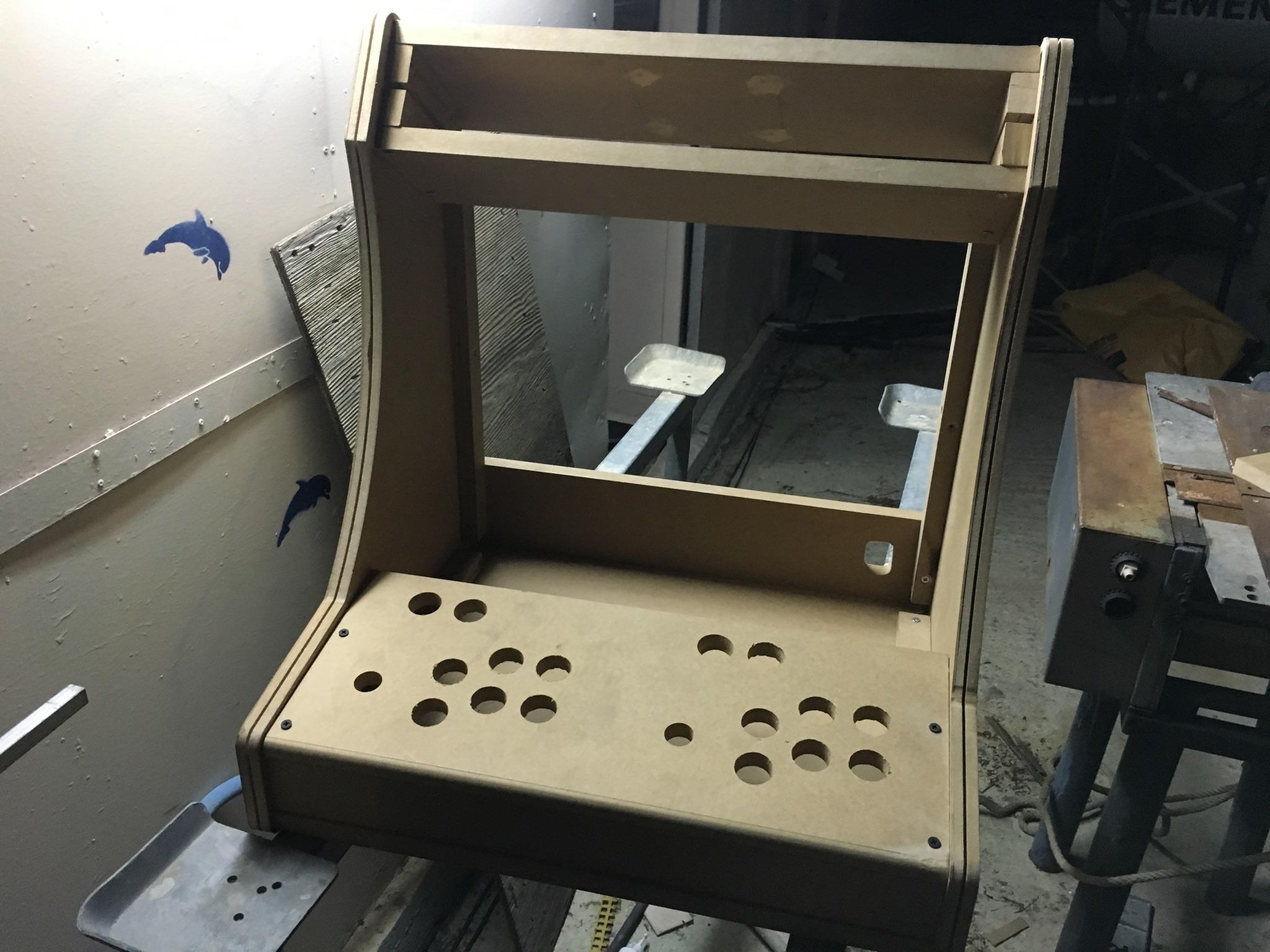

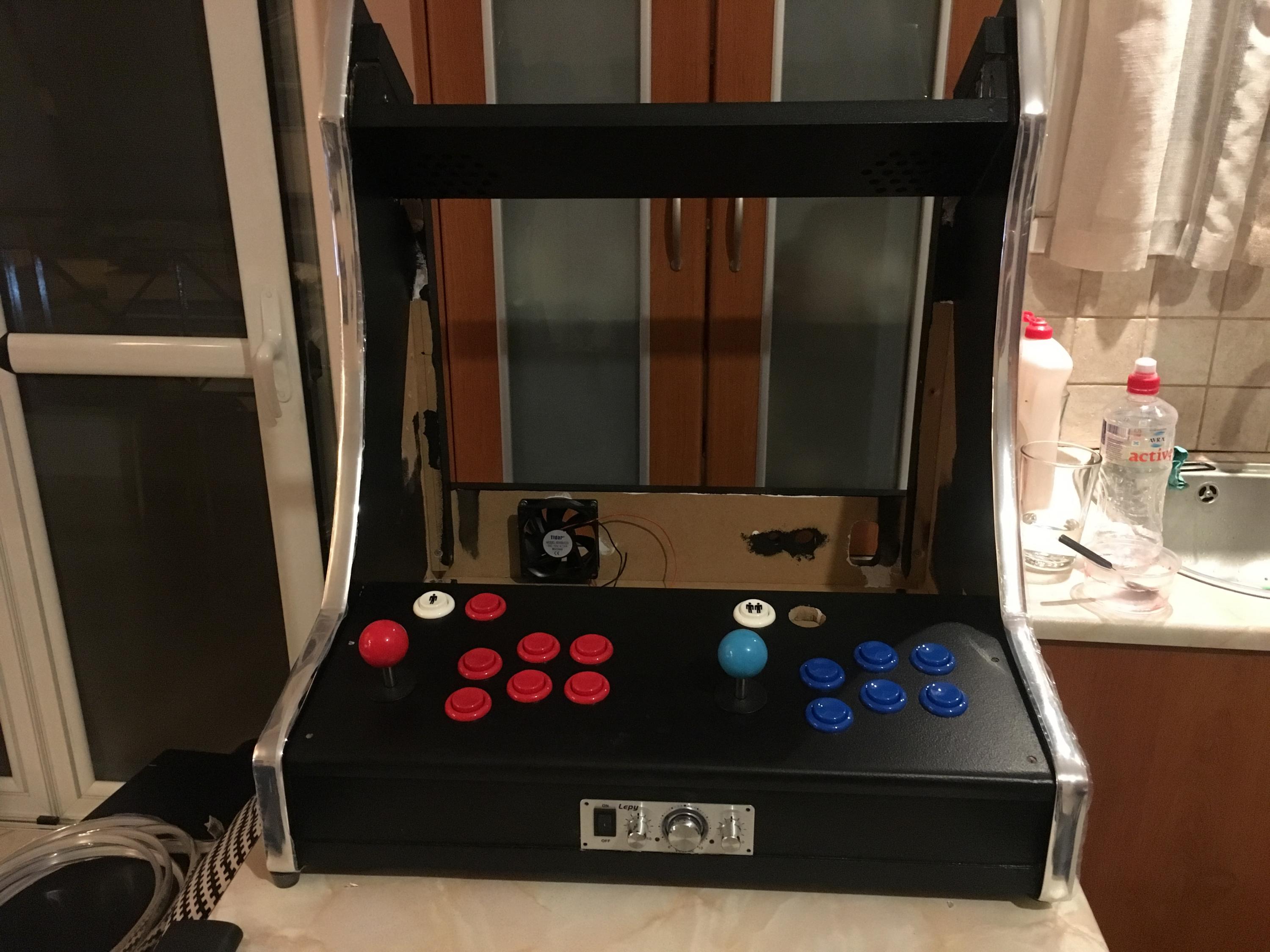

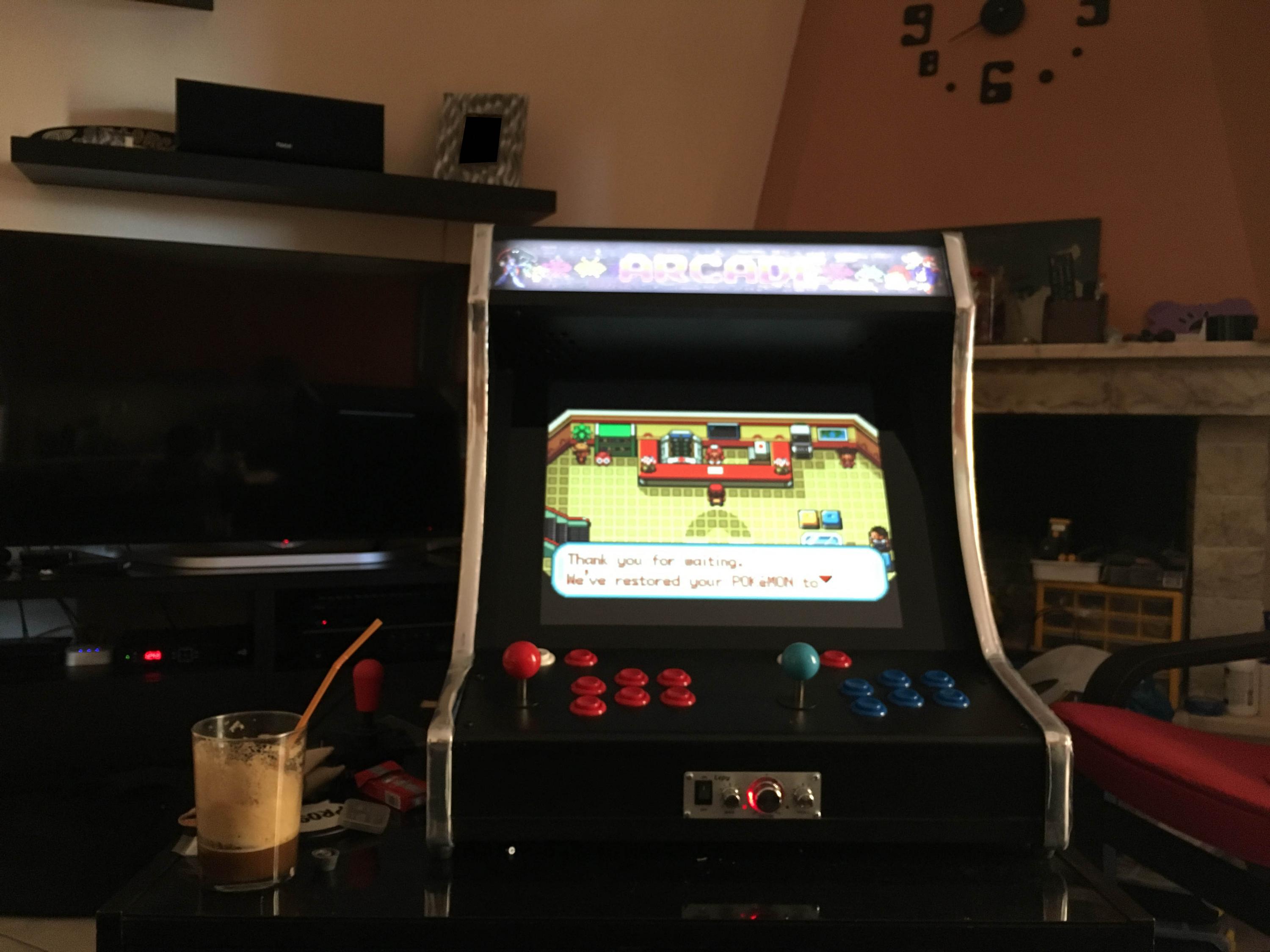

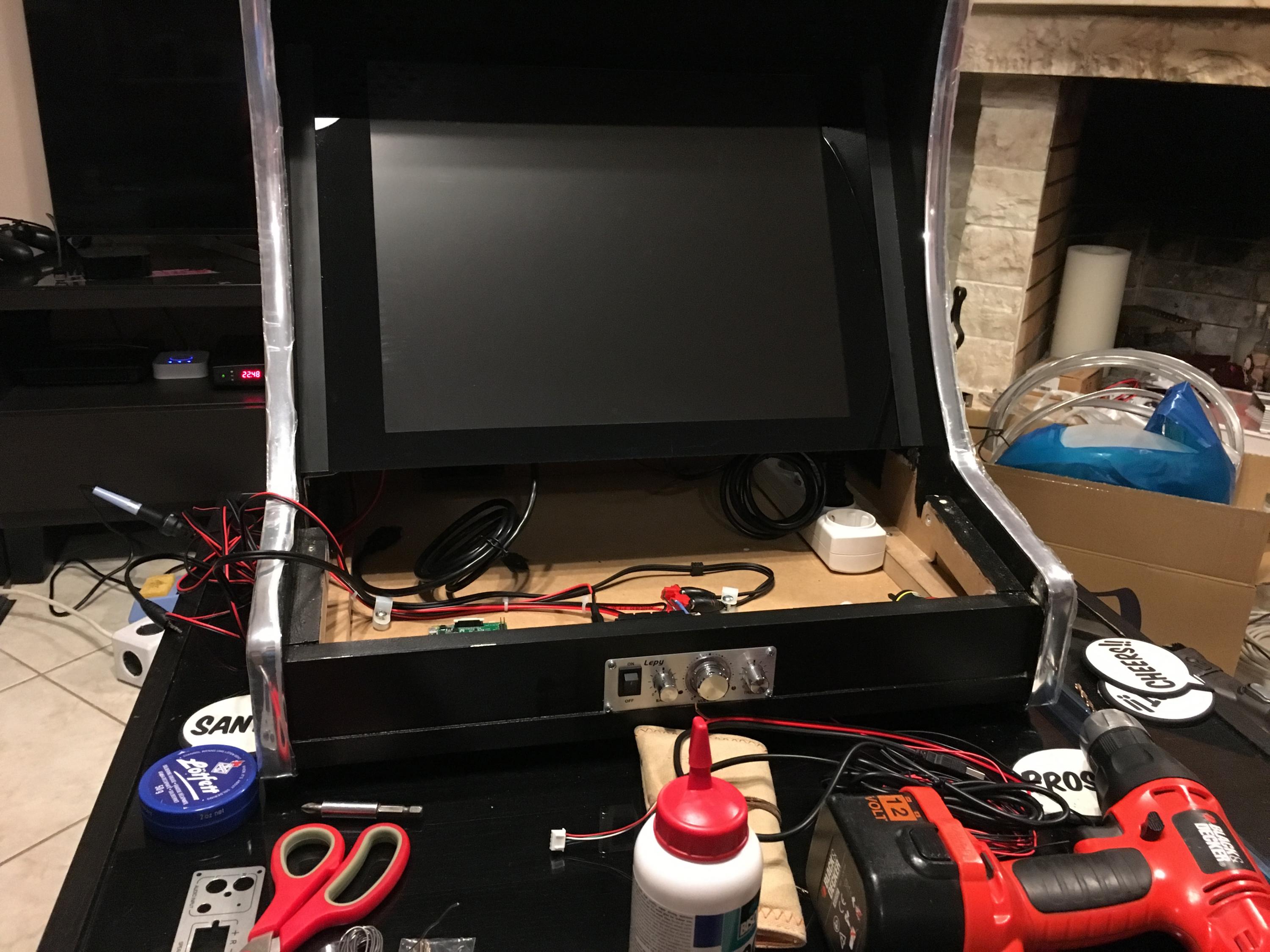

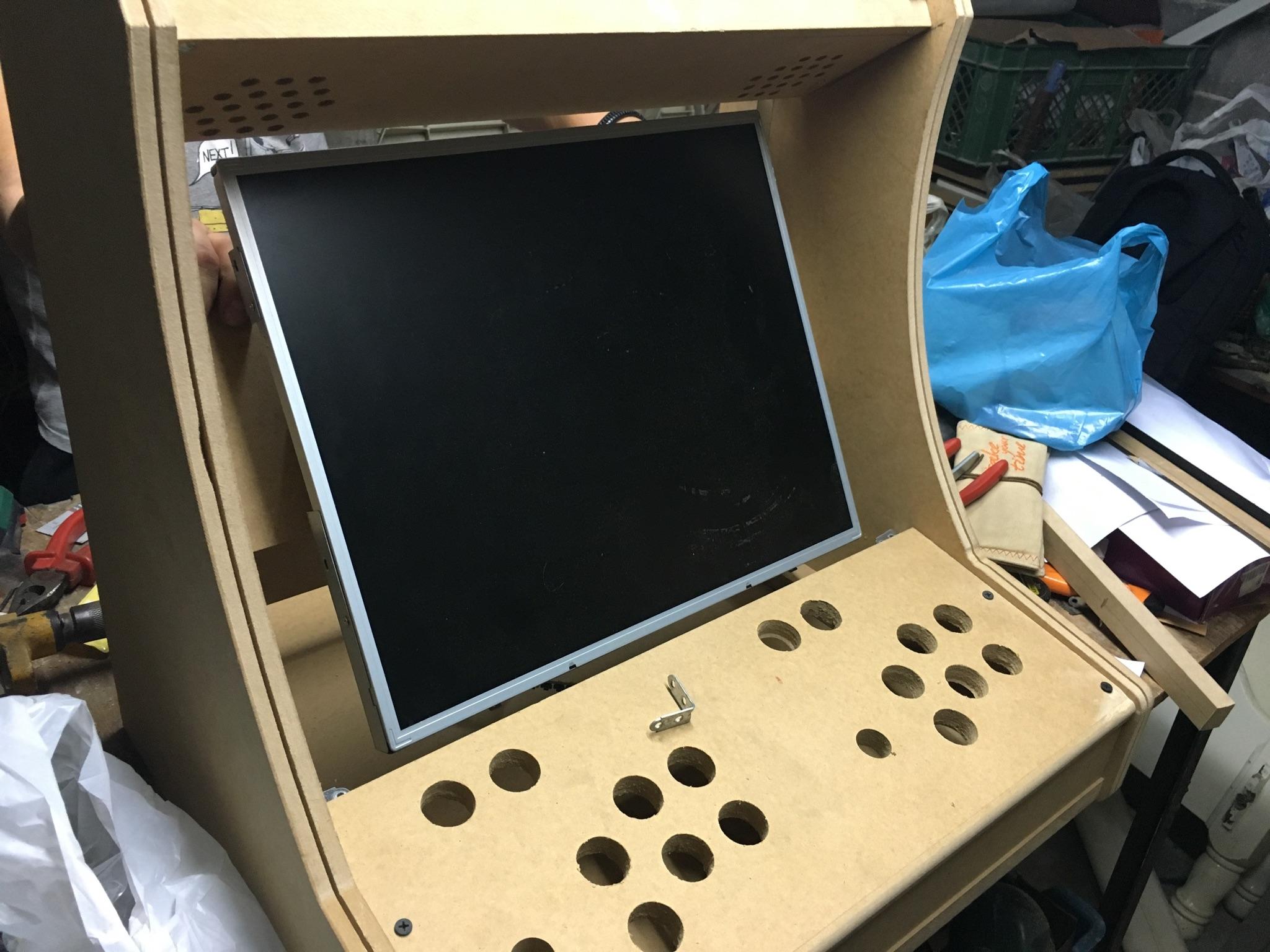

After a lot of search i decided to build my first bartop Cab powered by raspberry Pi.IMG_0051 2.JPGIMG_0046.JPGIMG_0006.JPGIMG_0011.JPGIMG_0055 2 copy.jpg

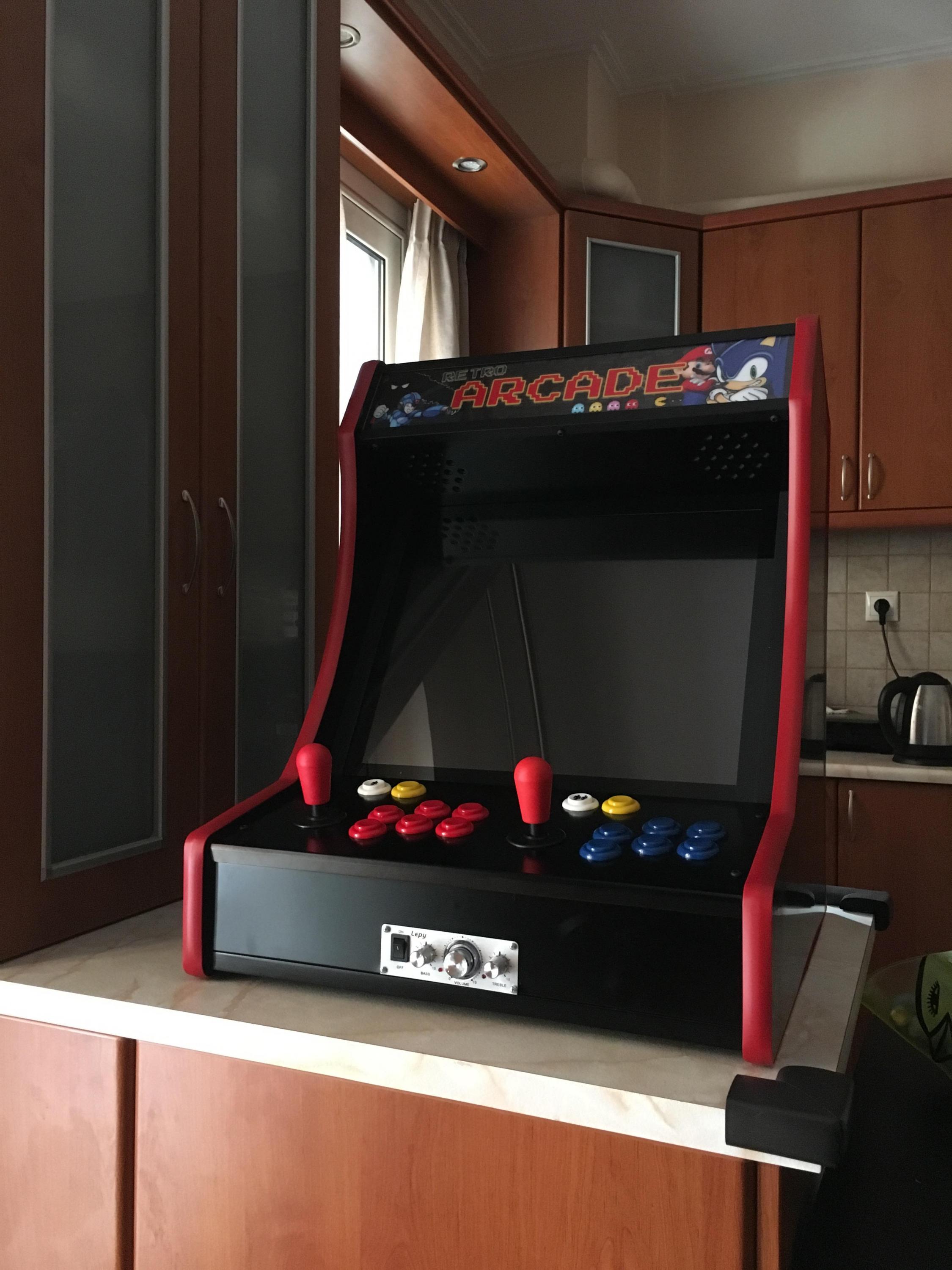

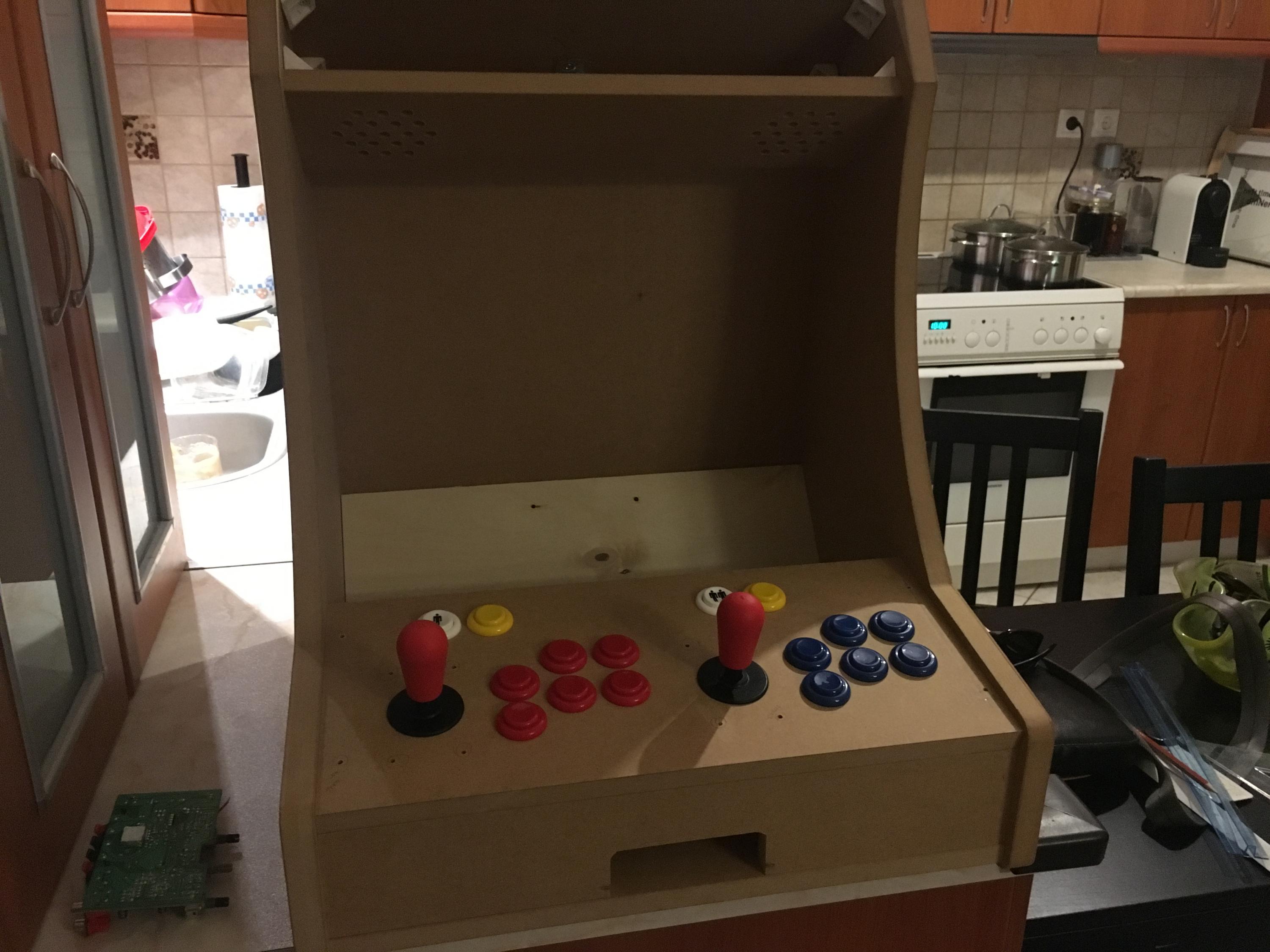

but i was not so happy with the results so i decided to build another one!!!This time powered by pcb PandoraBox 4 just for fun!IMG_0061 2.JPG





Now my next project will be a Bartop pc powered with Hyperspin Front end.







Share this post


Link to post
Share on other sites

Very nice :)

I wish I had room for one of these. Somehow I don't think it would go over too well if I set one up on the kitchen counter...

Share this post


Link to post
Share on other sites

i don t have room either. i just move cabs around the house :-)

Share this post


Link to post
Share on other sites

Those are really nice bar tops. I especially like your marquee and the curved side walls. What type of saw did you use to cut that curve?

Share this post


Link to post
Share on other sites

Thank you Icemanad. I made my plans in autocad an i used cnc router to cut the side walls.

Share this post


Link to post
Share on other sites

What size panel do you have in there? Also, have you tried using a scanline generator in your builds to emulate the 80s crt aethetic?

Share this post


Link to post
Share on other sites

I use 19" panel.fujitsu 19 b19-5 eco.i haven t tried using a scan line generator. Maybe in the future.

Share this post


Link to post
Share on other sites

I really dig the metallic t molding. props, bro

Share this post


Link to post
Share on other sites

Someday I will build something like that... someday...

Share this post


Link to post
Share on other sites

Soon i will upload my new project. Bartop arcade with pc powered by BigBox(launchbox). i m very excited. Stay Tuned...

Share this post


Link to post
Share on other sites
On 29/1/2017 at 7:41 PM, ilucifer said:

Soon i will upload my new project. Bartop arcade with pc powered by BigBox(launchbox). i m very excited. Stay Tuned...


Share this post


Link to post
Share on other sites

Looks great! No plans on adding artwork to the sides or controls area? Looks good as is, just wondering. I kind of like the plain black look, looks clean.

Share this post


Link to post
Share on other sites

Aw man, that looks awesome!  Where do you find T mouldings like that?

Share this post


Link to post
Share on other sites

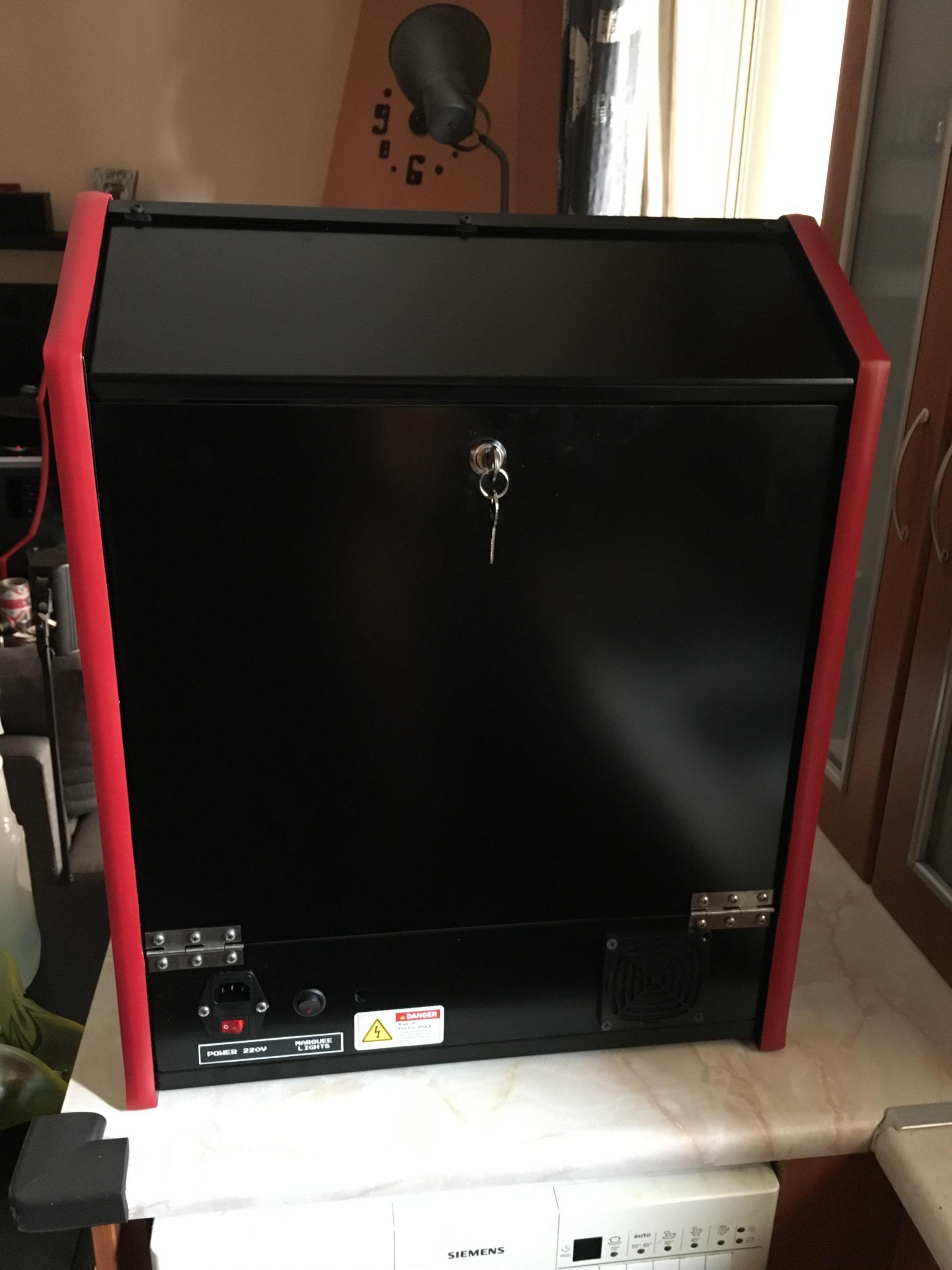

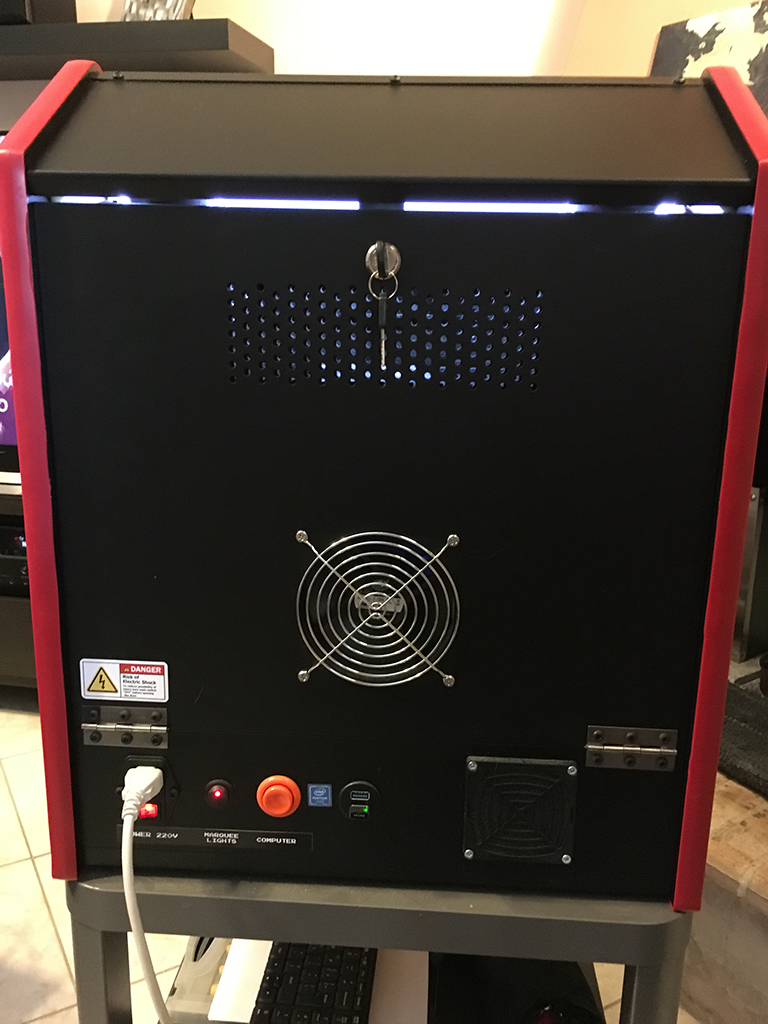

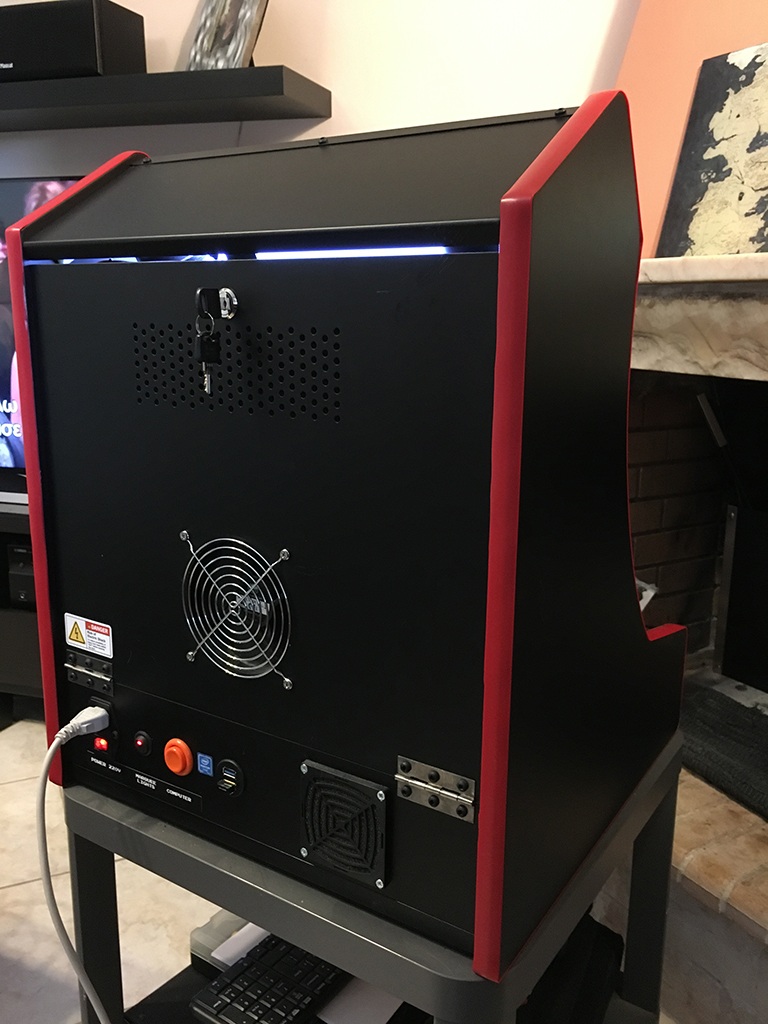

I love the audio control panel and what you did with the power on the back.  I hope you don't mind if I steal that :)  Did you purchase the read power panel as a single piece?

Share this post


Link to post
Share on other sites

great job!

Share this post


Link to post
Share on other sites

What is the best site to purchase or acquire cabinet plans from?

Share this post


Link to post
Share on other sites
On 2/11/2017 at 7:53 PM, Ted777 said:

Aw man, that looks awesome!  Where do you find T mouldings like that?

The chrome t-molding i bought it from eBay, the red one from arcadeworld.

On 2/13/2017 at 3:28 AM, TragicallyGeek said:

I love the audio control panel and what you did with the power on the back.  I hope you don't mind if I steal that :)  Did you purchase the read power panel as a single piece?

No i made it by my self.I don't mind.Glad you like it. If you need help just message me.

On 4/11/2017 at 5:41 AM, f8lbyte said:

What is the best site to purchase or acquire cabinet plans from?

I made my own plans. I don t know any site.

Share this post


Link to post
Share on other sites

very nice project indeed, and nice clean t-modling placement.

Congrats.

Share this post


Link to post
Share on other sites

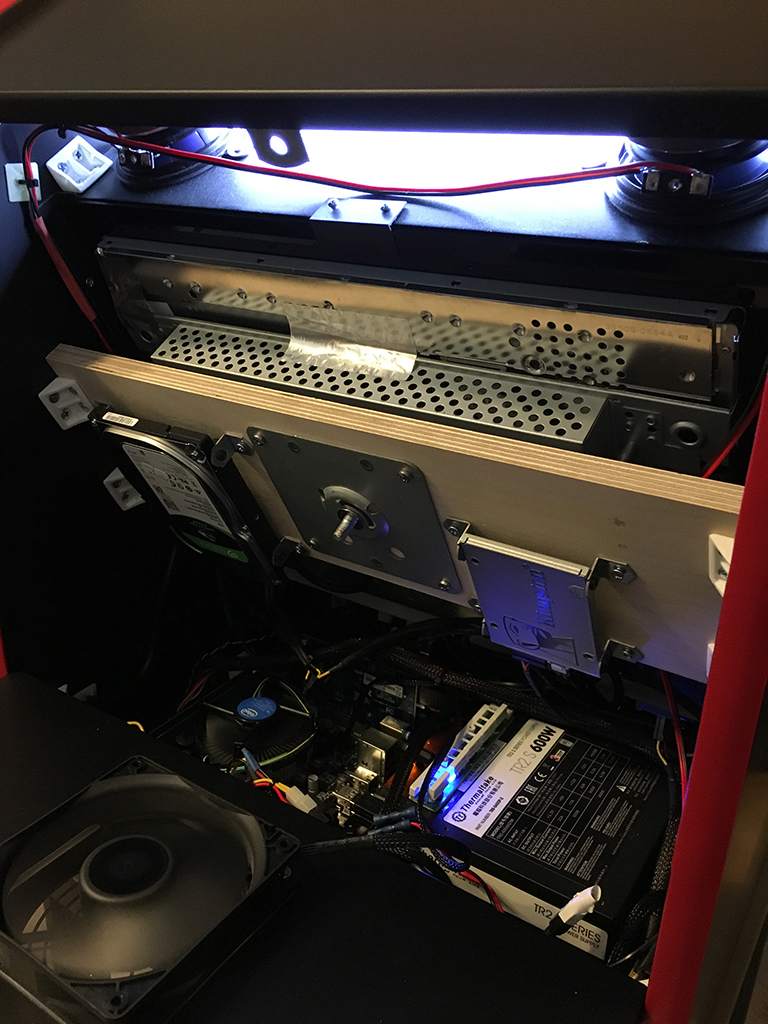

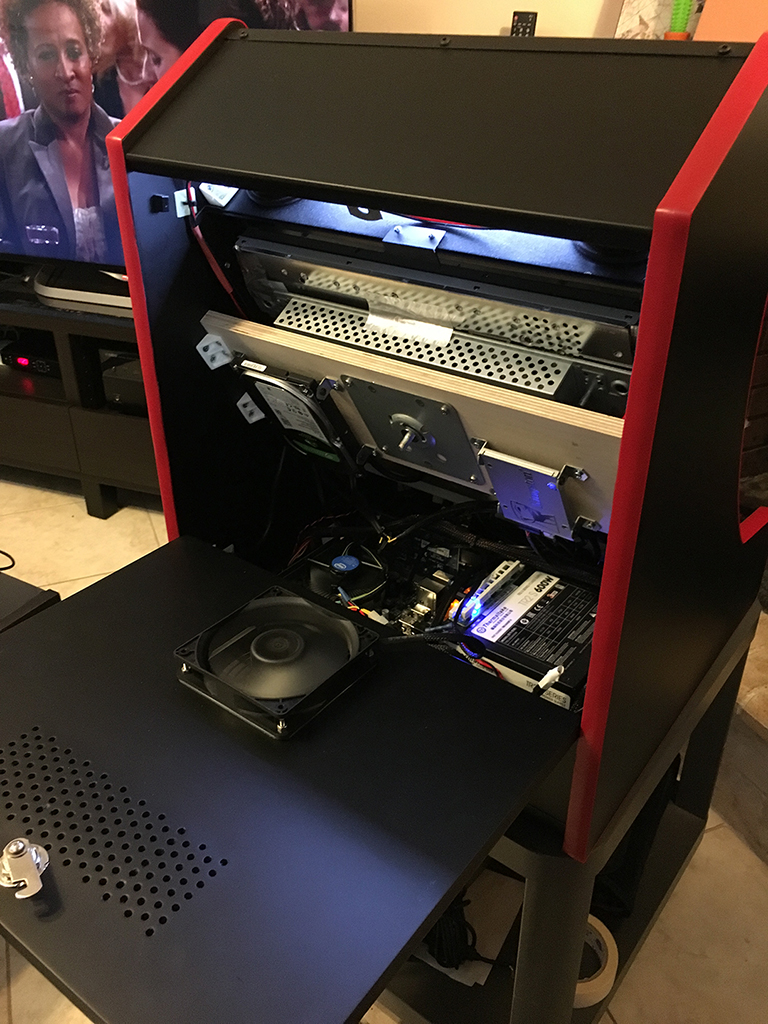

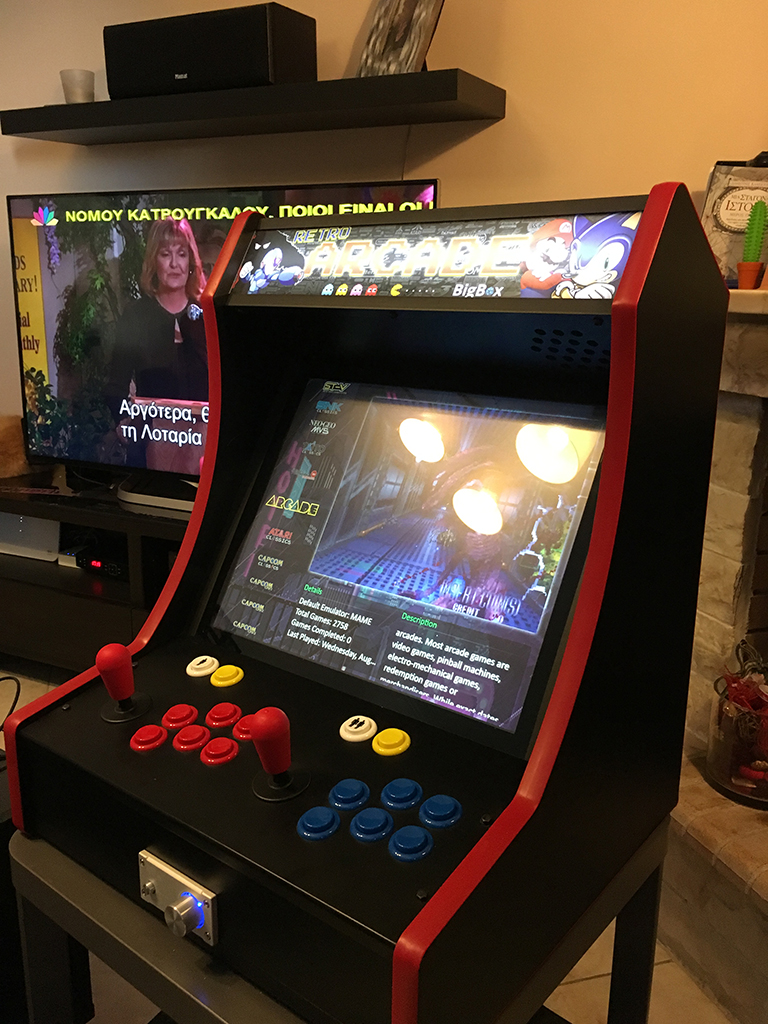

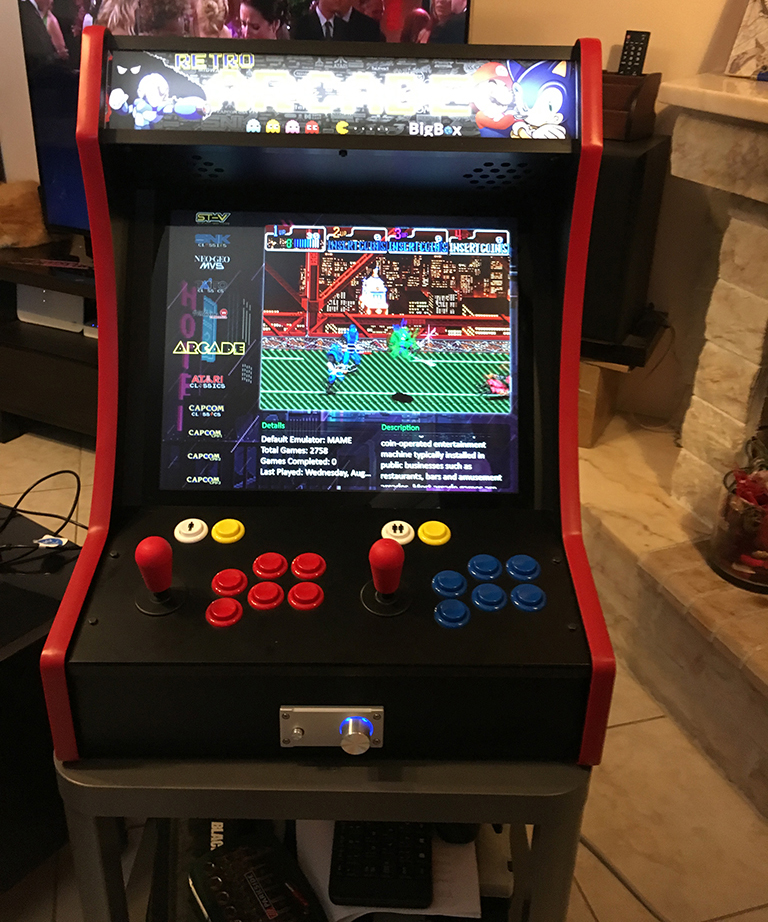

My last creation!!!!

Powered by pc

  • OS win 10 pro  (using custom user interface) booting straight in big box FrontEnd
  • 19 inch Monitor
  • intel pentium G4400 3.3Ghz
  • Geforce GT710 1Gb
  • 8 Gb ram
  • ssd 128 Gb for OS and FE
  • HDD 1Tb for roms
  • usb wifi dongle
  • ipac keyboard interface for arcade controls
  • PSU 600 watt powering Pc+audio amplifier+lights
  • arcade buttons Gold leaf
  • Joystick unfortunately generic( run out of money)

Now i have to make a vinyl sticker for the control panel...



E.jpg.83a44afdd252c401147fcb69883a2f54.jpgD.jpg.9e62189d4fd70e7343faa250f31a0d5c.jpgC.jpg.84049a0f5d929837d788d757365f50dd.jpg59aac78adc6b3_F.jpg.00e3084314b3c05089cbaf03486f8385.jpgB.jpg.1d5ef45ba712c0ae6e3deb3d4ee4943d.jpgA.jpg.d5ab5609007d0ab8af60fb4ab0582c8f.jpg

Share this post


Link to post
Share on other sites

What a beautiful setup. I need to make one for these for the den! Thanks!

Share this post


Link to post
Share on other sites

Awesome! Super quality build!  I made one myself, but for some reason I don-t remember, made it only 1P... (even though I did have 2 sets of controllers).



Might redo the control panel and add the second set.



In my case, as it was mostly just for old games, I used a mini ITX P4 PC

Share this post


Link to post
Share on other sites

Greatly impressive!  My fiancee is from Greece also and says Hi! :D

Share this post


Link to post
